SJN 4/100

SJN 4/100

SJN 4/100

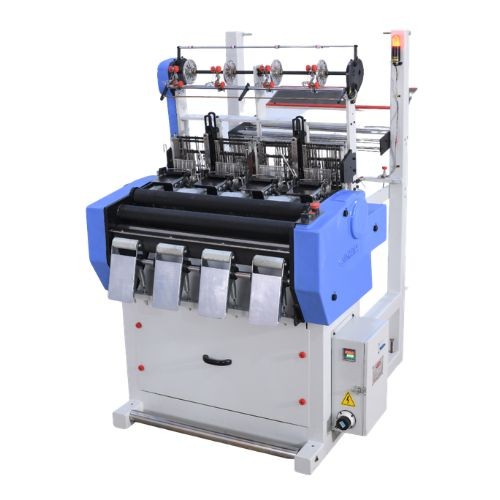

The SJN 4/100 High Speed Needle Loom is built for wider webbing and industrial tape production. Its powerful drive system and rigid frame construction provide excellent fabric quality, even during demanding production cycles.

Key Features
• Suitable for wider fabric widths
• Heavy-duty machine construction
• 2 HP drive motor for enhanced performance
• Automatic yarn break monitoring
• Positive weft insertion system
• Smooth and vibration-free operation
• Centralized lubrication
• Designed for industrial applications

Model No.

SJN 4-100

Max. Width

100 mm

Thickness

0.3-5

R.P.M.

400-600

Break

Attached

Heald Frame

04-Oct

Drive Motor

2 HP Three Phase

Chain Repeat

Aug-48

Cam

Chain Link / Fix Cams

Weft & Warp

Automatic

Lubrication

Automatic

Catch Thread

Attached

Weft Supply

Attached

Weight

650 kgs.

Creel Stand for Jumbo Bags

1200 Nos. Bobbin

×
