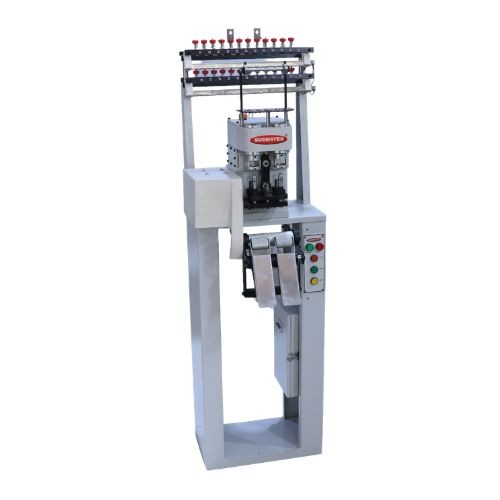

"COMBI" Heavy Duty
The "COMBI" Heavy Duty Fast Knit Braiding Machine is specially designed for manufacturing larger-diameter braided cords with superior strength and consistency. Its robust construction, flexible configuration, and high-speed operation make it ideal for demanding industrial applications.
Key Features
• Heavy-duty machine construction
• High-speed and quiet operation
• Compact footprint for efficient space utilization
• Direct cone yarn feeding system
• Automatic stop on yarn breakage or exhaustion

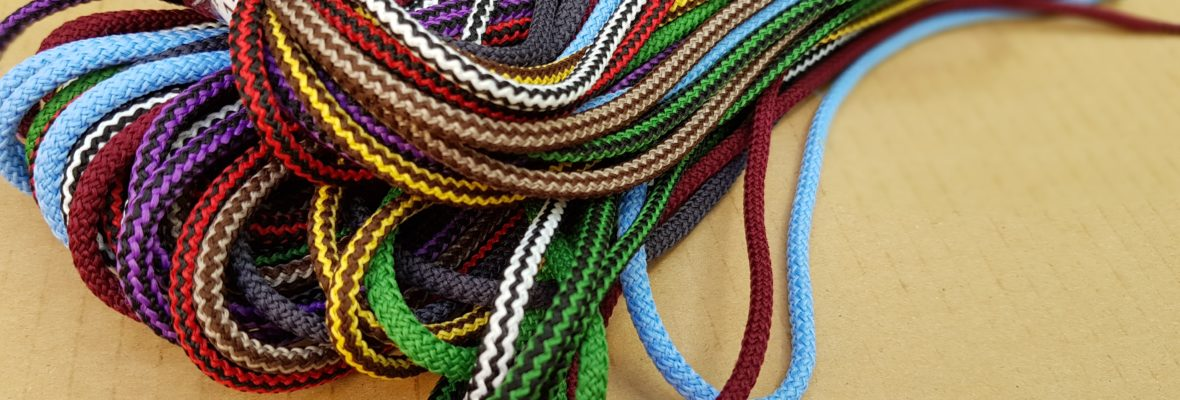

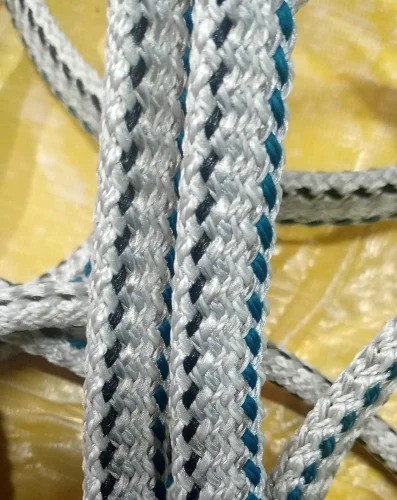

• Produces cords from 2 mm to 16 mm in diameter
• Supports 4, 6, 8, 12, and 16-bobbin constructions
• Adjustable cord density through changing gears
• Reduced operator intervention
Specification | COMBI Heavy Duty |
Cord Diameter | 2 – 16 mm |
No. of Fabric Cords | 2 Nos. |
Core Insertion | Possible |
Machine Speed | 1000 RPM |
No. of Needles | 4, 6, 8, 12, 16 |
Electric Motor | 0.5 HP (0.37 kW), 3-Phase AC |
Net Weight | 150 kg |
Creel | Customizable as per requirement |
×
