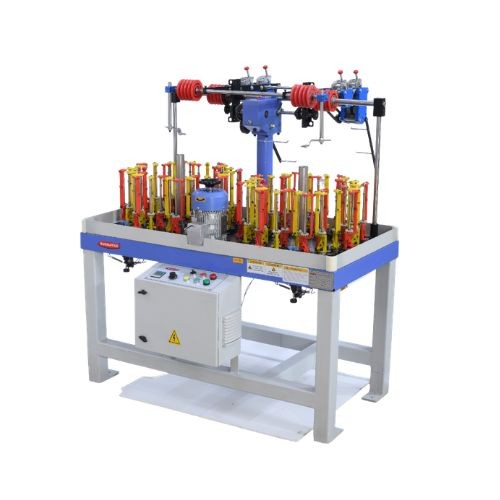

SHB 32-2-90
The SHB 32-2-90 High Speed Braiding Machine offers an ideal balance of productivity and flexibility. With 32 spindles and dual-head operation, it is suitable for manufacturing a wide range of braided ropes, cords, shoelaces, and industrial braids.
Key Features
• 32-spindle configuration for versatile production
• Dual-head design for enhanced productivity
• High-speed operation up to 330 RPM
• Suitable for various rope and cord applications
• Smooth and uniform braiding performance
• Compact machine footprint
• Low maintenance requirements
• Reliable operation for continuous production
Sr. No. | Model | Spindle | Heads | Horn Gear Size (mm) | Braiding type | Bobbin size(mm) | Speed |
1 | SHB 12-4-90 | 12 | 4 | 90 | Round | Φ48*140 | 330 |
2 | SHB 16-2-90 | 16 | 2 | 90 | Round | Φ48*140 | 330 |
3 | SHB 16-4-90 | 16 | 4 | 90 | Round | Φ48*140 | 330 |
4 | SHB 24-2-90 | 24 | 2 | 90 | Round | Φ48*140 | 330 |
5 | SHB 32-2-90 | 32 | 2 | 90 | Round | Φ48*140 | 330 |
6 | SHB 48-2-90 | 48 | 2 | 90 | Round | Φ48*140 | 330 |
7 | SHB 17-4-90 | 17 | 4 | 90 | Flat | Φ48*140 | 330 |
8 | SHB 21-4-90 | 21 | 4 | 90 | Flat | Φ48*140 | 330 |
9 | SHB 25-2-90 | 25 | 2 | 90 | Flat | Φ48*140 | 330 |
10 | SHB 33-2-90 | 33 | 2 | 90 | Flat | Φ48*140 | 330 |
×
